Building your own Edera zone kernel

Want full control over the kernel that runs inside your Edera zones? This guide walks you through building your own Linux kernel OCI image using Edera’s open-source tooling—either via GitHub Actions or locally on your machine.

Why build your own zone kernel?

Edera’s default zone kernel is fast, secure, and hardened—but you may want to:

• Enable or disable specific Kconfig options
• Add out-of-tree drivers or modules
• Apply experimental kernel patches
• Debug with extra symbols or instrumentation
• Use a different upstream kernel series

Approach 1: Build kernels with GitHub Actions

Use GitHub’s infrastructure to build and publish kernel images automatically.

Step 1: Fork the repo

Fork edera-dev/linux-kernel-oci into your GitHub org or account.

Step 2: Understand the GitHub workflow

The repo includes a workflow at:

.github/workflows/build.yaml

This will build and push kernels to the GitHub Container Registry (ghcr.io) using the default GITHUB_TOKEN. You can learn more about this token in GitHub’s docs.

Step 3: Update config.yaml

Edit the root-level config.yaml:

• Change imageNameFormat to point to your own container registry:

imageNameFormat: "ghcr.io/<your-org>/[image]:[tag]"

• Optionally change which flavors, variants, or kernel versions you want to build.

• Customize Kconfig fragments in the configs/ directory as needed.

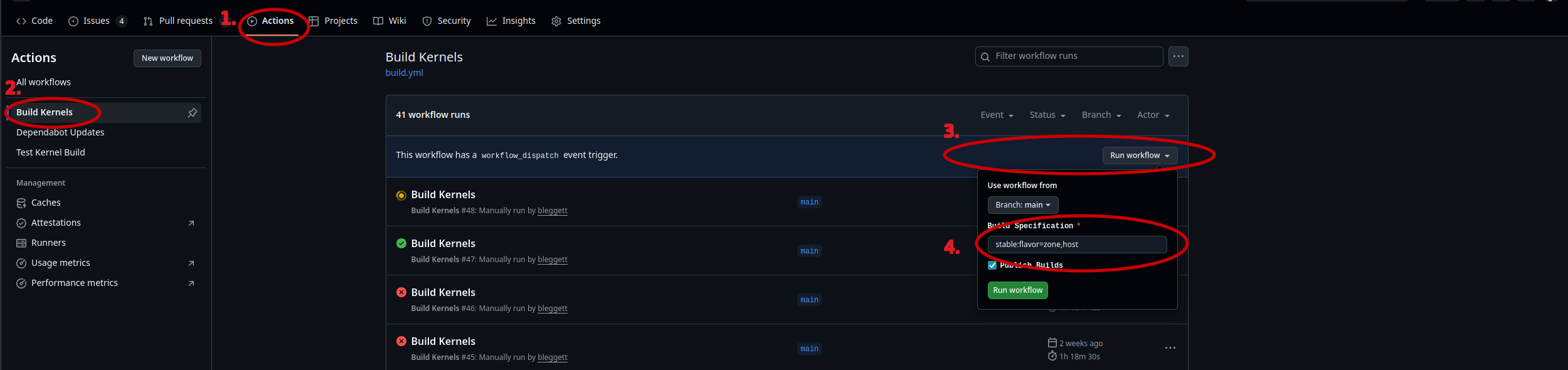

Step 4: Trigger a build

From the Actions tab in your forked repo, run the Build Kernels job.

In the workflow input field, specify which kernels to build:

stable:flavor=zone,host

This example builds both the zone and host flavors from the latest stable kernel.org releases for all LTS kernels.

Approach 2: Build locally (for debugging or rapid iteration)

Local builds are ideal when you need full control, want to test quickly, or want to inspect output manually.

Step 1: Clone the repo

git clone https://github.com/edera-dev/linux-kernel-oci.git
cd linux-kernel-oci

Step 2: Edit config.yaml

You’ll find config.yaml at the root of the repo. This file defines what kernels will be built, where they’ll be pushed, and for which architectures and versions. To avoid building dozens of variants you don’t care about, you’ll want to edit this file carefully:

• Set the target image registry
  Update imageNameFormat to a registry you control. For example, to push to a temporary test registry:

imageNameFormat: "ttl.sh/yourname/[image]:[tag]"

• Limit the architectures
  By default, this repo builds for both x86_64 and arm64. If you only need one, reduce it:

architectures:
- x86_64

This uses Docker buildx, so you can cross-build arm64 on x86_64 hosts and vice versa.

• Limit the flavors
  You can build zone or host kernels, or both. Each has its own configuration fragment:

flavors:
- name: zone-bpf

• Limit the versions
  This repo supports building across many upstream kernel.org versions. You probably don’t want them all. To build just a specific series:

versions:
- series: '5.4'

• Or build only the latest in a series
  Example: build only the latest point release in 6.15 for x86_64 and push it to a ttl.sh registry:

imageNameFormat: "ttl.sh/hackben/[image]:[tag]"
architectures:
- x86_64
flavors:
- name: zone-bpf
constraints:
    series:
    - '6.15'
versions:
- current: true

💡 These constraints will drastically reduce build time and disk usage. Always check the generated matrix before running the build.

Step 3: Customize kernel config

Edit the Kconfig fragments in configs/ to enable or disable features. See configs/README.md for syntax and options.

Step 4: Build the kernel

./hack/build/docker-build.sh

This script will generate the build matrix and compile your kernel using docker buildx.

Step 5: Use the kernel image

Once built, your image will appear in docker image list.

You can:

• Push it:

docker push ttl.sh/<your-username>/zone-kernel:6.6.15

• Inspect it:

crane export ttl.sh/<your-username>/zone-kernel:6.6.15 - --platform=linux/amd64 | tar xf - -C ./output
cd output/kernel
zcat config.gz
unsquashfs addons.squashfs

Notes on patches and flavors

• Edera carries a small number of patches, tracked in the patches/ directory.
• Not all patches apply to all kernel versions—config.yaml defines the version constraints.
• Kernel flavors and variants are defined in configs/`, and support Kconfig overlays.

Troubleshooting

• Make sure docker buildx is installed and working for cross-builds (especially for arm64).
• If builds take too long or run out of memory, reduce the matrix in config.yaml.
• Some registry tags (like ttl.sh) auto-expire, which is great for one-off tests.

What’s next?

After you’ve built and published your custom kernel, you can use it in Edera zones via the CLI or Kubernetes:

protect zone launch   --kernel ttl.sh/<your-username>/zone-kernel:6.6.15   ...

Or use the dev.edera/kernel annotation in Kubernetes:

annotations:
   dev.edera/kernel: ttl.sh/<your-username>/zone-kernel:6.6.15
